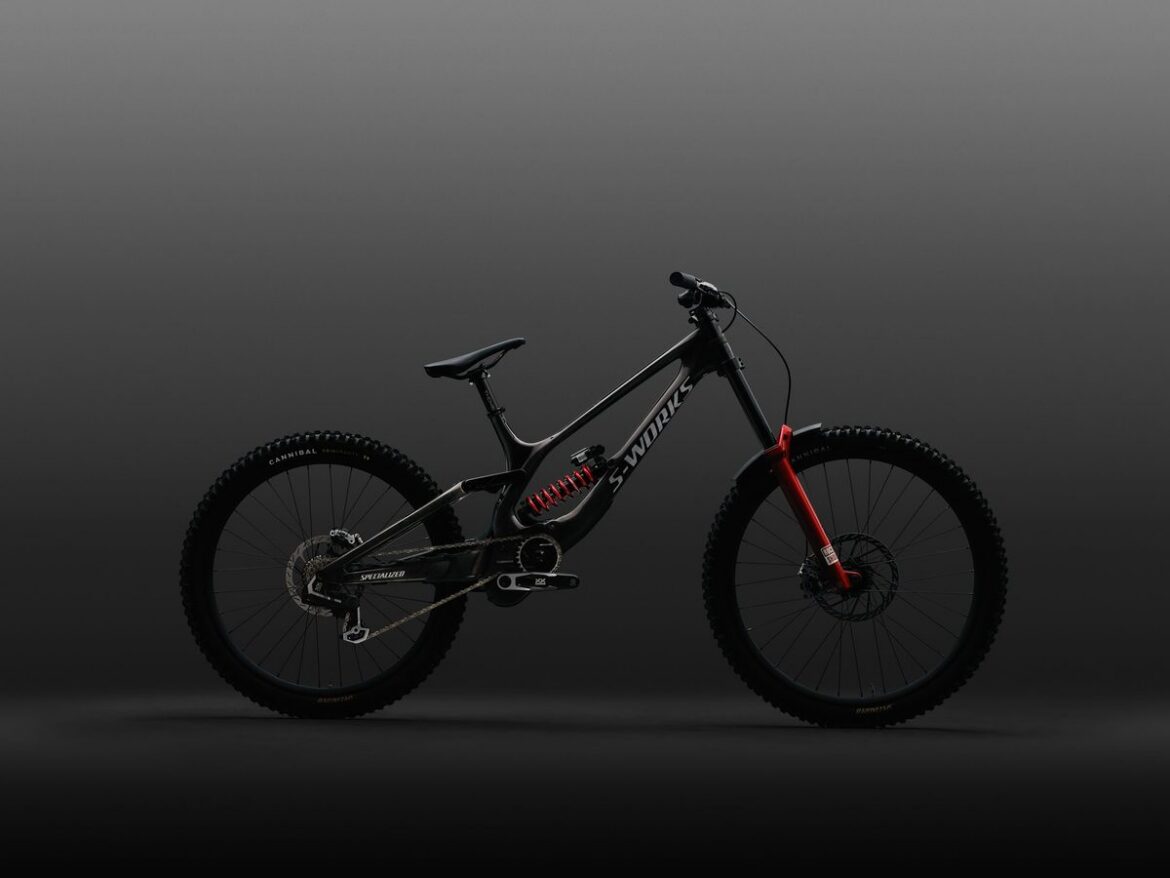

Specialized’s latest downhill machine, the Demo 11, emerges as a formidable contender in the competitive arena, blending innovative engineering with rider-centric design. Developed over three years in collaboration with Specialized’s World Cup race team, including insights from Loïc Bruni, the Demo 11 signifies a substantial evolution from its predecessor. (bikeradar.com)
HighGear Drivetrain: Elevating Performance
At the heart of the Demo 11 lies the proprietary HighGear drivetrain, a collaboration with SRAM that reimagines traditional setups. This system replaces the conventional bottom bracket-mounted chainring with a compact drive ring connected to a jackshaft positioned higher within the frame. This configuration not only increases ground clearance by 30mm, reducing the risk of chainring strikes on rugged terrains, but also minimizes pedal kickback, ensuring a more consistent suspension performance under load. (bikeradar.com)
OBB Suspension: Precision in Motion
Complementing the drivetrain is the Over Bottom Bracket (OBB) suspension system. This design introduces a Horst-link configuration with additional links that independently control axle path, leverage ratio, and braking behavior. By decoupling these elements, the OBB system allows for precise tuning of each parameter without compromise, resulting in a suspension that remains active and responsive, even under hard braking. (bikeradar.com)
Self-Aligning Chassis: Stability Under Load
The Demo 11’s frame, constructed from Specialized’s FACT 11m carbon, features a self-aligning chassis that directs load paths through the rear end. By pulling on the linkage rather than pushing, this design reduces deflection and enhances precision during high-speed descents, ensuring the rear wheel remains aligned and the bike maintains composure through challenging sections. (bikeradar.com)
Geometry and Adjustability: Tailored Fit
Maintaining a race-focused geometry, the Demo 11 offers a fixed head angle of 62.5 degrees and reach measurements of 445mm, 475mm, and 500mm across sizes S3 to S5. Adjustable headset cups allow for a 6mm reach modification, while the bottom bracket height can be fine-tuned by 7mm, providing riders with the flexibility to tailor the bike’s fit to specific tracks and personal preferences. (bikeradar.com)
S-Works Build and Pricing
The Demo 11 is available exclusively in the S-Works build or as a frameset. The complete bike is priced at $11,000, featuring a RockShox Boxxer Ultimate fork, RockShox Vivid Coil Ultimate DH shock, and SRAM XX DH AXS T-Type drivetrain. The frameset is available for $6,500. (bikeradar.com)
In summary, the Specialized Demo 11 stands as a testament to cutting-edge downhill engineering, offering riders a machine that combines innovative drivetrain technology, precise suspension dynamics, and customizable geometry to tackle the most demanding courses with confidence and control.
