Exploring the S.E.A.R. Machine: A Masterpiece of Bicycle Engineering
In the realm of custom bicycle design, few creations stand out as boldly as the Scorched Earth Advanced Research (S.E.A.R.) Machine. Crafted by the innovative minds at Good Grief Hand Built Bicycles, this bike represents a fusion of artistic vision and engineering prowess.
A Vision Realized
The S.E.A.R. Machine was conceived by Josh Uhl, a Wisconsin-based cycling enthusiast with a penchant for unique bike builds. Collaborating with Christopher Schmidt of Good Grief Bikes, Uhl sought to create a fixed-gear freestyle-inspired 26+ mountain klunker. This vision materialized into a bike that challenges conventional design norms.
Innovative Design Elements

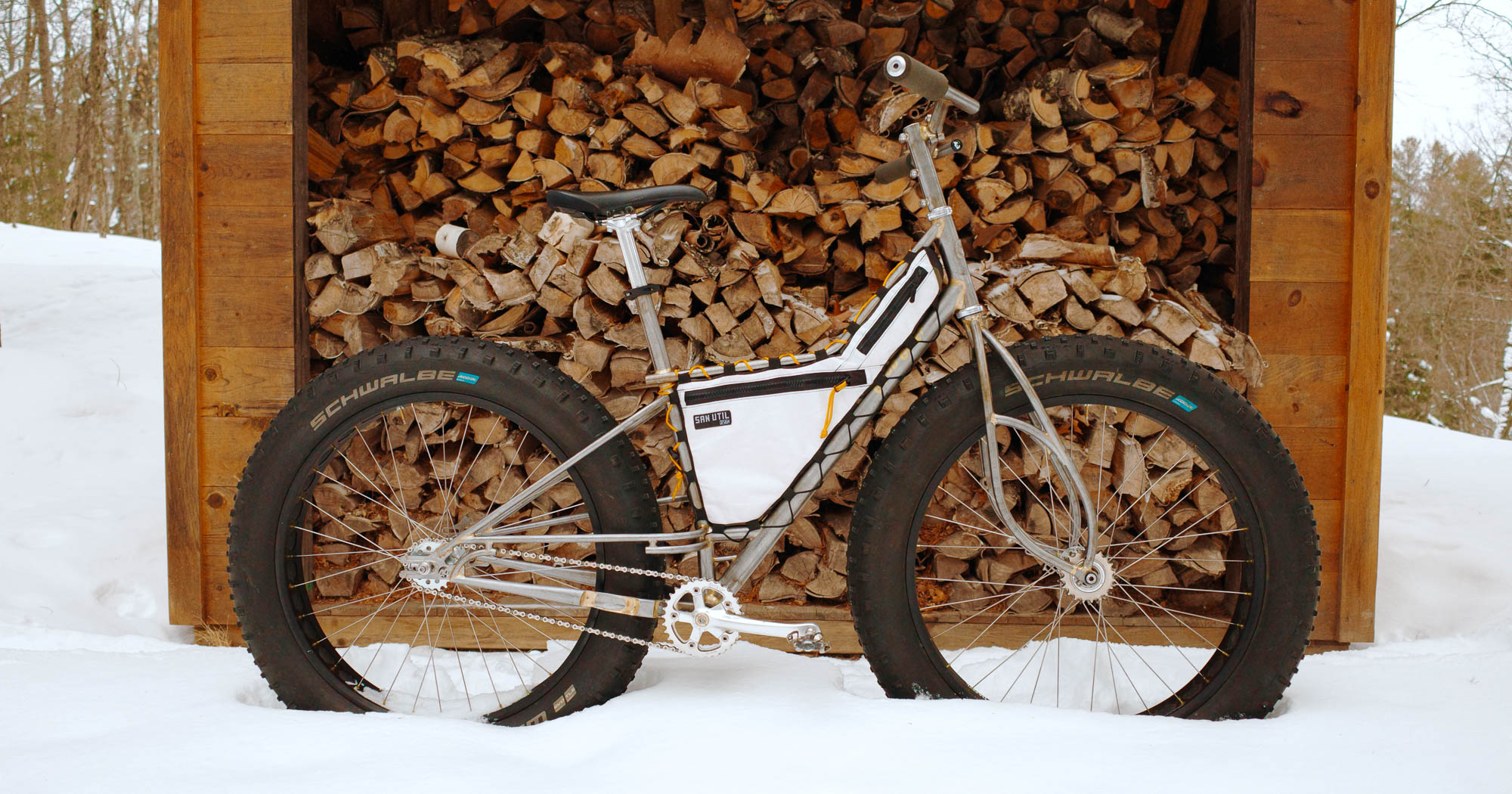

The frame’s design is a testament to creativity, featuring low-slung double top tubes, curved triple stays, and a truss fork. These elements not only enhance the bike’s aesthetic appeal but also contribute to its structural integrity. The incorporation of a 17mm offset allows for the accommodation of 5.0” tires with 148mm boost hubs, facilitating wheel swaps between freewheel and fixed configurations.
Component Selection
Uhl’s choice of components complements the bike’s unique design. The wheelset comprises Paul Components Boost Disc WORD Hubs paired with Surly My Other Brother Daryl rims, ensuring durability and performance. The drivetrain features a White Industries high-engagement double freewheel (20/22) and a Surly 21T fixed cog, offering versatility across various terrains. Vintage square-taper cranks with 32/30 Surly Stainless rings provide the option to run multiple chainrings, enhancing gear ratio flexibility.
Braking and Handling
For braking, Uhl opted for Paul Klampers and Love Levers, connected with SimWorks by Nissen cable and housing, capped with Cable Cherries. This setup ensures reliable stopping power. The S.E.A.R. Tower Stem, with 140mm of stack and 32mm of reach, connects to the Good Grief Nice Bars, offering a comfortable and controlled riding experience.
Versatility and Performance
Designed for a range of riding conditions, the S.E.A.R. Machine is equipped to handle everything from casual rides to demanding bikepacking adventures. Its adaptability is evident in its performance during events like the Tuscobia 160-mile fat bike race in Wisconsin, where it demonstrated resilience and reliability.
A Work of Art
Beyond its functional attributes, the S.E.A.R. Machine is a testament to the artistry inherent in bicycle design. It embodies a blend of nostalgia and modernity, serving as both a mode of transportation and a canvas for creative expression.
Conclusion
The S.E.A.R. Machine stands as a remarkable example of what can be achieved when passion meets innovation. Its unique design and thoughtful component selection make it a standout in the world of custom bicycles, appealing to enthusiasts seeking both performance and artistry in their rides.
